Cerwin Vega Stroker 18S Qtc=0.707
Driver parameters:
Qts=0.191
Fs=31.00 Hz
Vas=5.78 cu. ft
SPL=96.0 dB 1W 1m
max power=1600 W RMS
Diameter=0.457 m
Xmax=0.019 m
Calculated parameters:
Vd=0.002155 m^3
n0=0.025119
Fc=114.75 Hz
F3=114.77 Hz
Vb=0.46 cu. ft
Par=341.410 acoustic W
Per=13591.76 W
Thermal and Xmax limited SPL as a function of frequency:
Hz | SPL thermal | SPL xmax | Power xmax |
---|
2.0 | 57.69 dB | 66.98 dB | 13591.8 W |
4.0 | 69.73 dB | 79.03 dB | 13591.8 W |
6.0 | 76.78 dB | 86.07 dB | 13591.9 W |
8.0 | 81.77 dB | 91.07 dB | 13592.1 W |
10.0 | 85.65 dB | 94.94 dB | 13592.6 W |
12.0 | 88.82 dB | 98.11 dB | 13593.5 W |
14.0 | 91.50 dB | 100.79 dB | 13594.9 W |
16.0 | 93.81 dB | 103.11 dB | 13597.1 W |
18.0 | 95.86 dB | 105.15 dB | 13600.2 W |
20.0 | 97.69 dB | 106.98 dB | 13604.6 W |
22.0 | 99.34 dB | 108.64 dB | 13610.4 W |
24.0 | 100.85 dB | 110.15 dB | 13618.1 W |
26.0 | 102.24 dB | 111.54 dB | 13628.0 W |
28.0 | 103.52 dB | 112.83 dB | 13640.4 W |
30.0 | 104.72 dB | 114.03 dB | 13655.8 W |
32.0 | 105.83 dB | 115.15 dB | 13674.6 W |
34.0 | 106.88 dB | 116.20 dB | 13697.2 W |
36.0 | 107.86 dB | 117.19 dB | 13724.2 W |
38.0 | 108.79 dB | 118.13 dB | 13756.1 W |
40.0 | 109.67 dB | 119.03 dB | 13793.4 W |
42.0 | 110.50 dB | 119.87 dB | 13836.8 W |
44.0 | 111.30 dB | 120.68 dB | 13886.8 W |
46.0 | 112.05 dB | 121.45 dB | 13944.1 W |
48.0 | 112.77 dB | 122.19 dB | 14009.3 W |
50.0 | 113.46 dB | 122.90 dB | 14083.3 W |
52.0 | 114.11 dB | 123.58 dB | 14166.6 W |
54.0 | 114.74 dB | 124.24 dB | 14260.2 W |
56.0 | 115.34 dB | 124.87 dB | 14364.7 W |
58.0 | 115.91 dB | 125.48 dB | 14481.0 W |
60.0 | 116.46 dB | 126.07 dB | 14610.0 W |
62.0 | 116.99 dB | 126.64 dB | 14752.5 W |
64.0 | 117.50 dB | 127.19 dB | 14909.6 W |
66.0 | 117.98 dB | 127.72 dB | 15082.0 W |
68.0 | 118.45 dB | 128.24 dB | 15270.8 W |
70.0 | 118.89 dB | 128.75 dB | 15477.1 W |
72.0 | 119.32 dB | 129.24 dB | 15701.8 W |
74.0 | 119.73 dB | 129.71 dB | 15946.0 W |
76.0 | 120.12 dB | 130.18 dB | 16210.8 W |
78.0 | 120.49 dB | 130.63 dB | 16497.3 W |
80.0 | 120.85 dB | 131.07 dB | 16806.8 W |
82.0 | 121.20 dB | 131.50 dB | 17140.3 W |
84.0 | 121.53 dB | 131.91 dB | 17499.2 W |
86.0 | 121.84 dB | 132.32 dB | 17884.6 W |
88.0 | 122.14 dB | 132.72 dB | 18297.9 W |
90.0 | 122.43 dB | 133.11 dB | 18740.3 W |
92.0 | 122.70 dB | 133.49 dB | 19213.2 W |
94.0 | 122.96 dB | 133.87 dB | 19717.9 W |
96.0 | 123.21 dB | 134.23 dB | 20255.9 W |
98.0 | 123.45 dB | 134.59 dB | 20828.6 W |
100.0 | 123.67 dB | 134.94 dB | 21437.4 W |
In this alignment the Aura 1808 driver is thermal limited.
There is no Xmax / thermal crossover point.
This speaker just doesn't work in a sealed box alignment.
If you drop the Qtc to .500 the box volume rises to about 1 cu ft and even
then, 2kW input still doesn't cut it! Check out this speakers

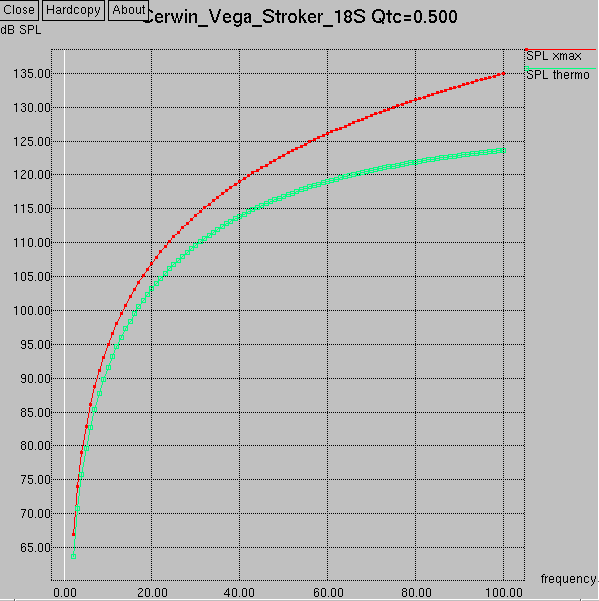

Xmax/thermal Qtc=.500 plot.
Put this speakers in a 4 cu ft box, operate it below its ~80Hz resonance,
put a -12dB/octave LPF at 10Hz or a bass boost of +36dB at 10Hz and you
are ready to rock!
Or put it in a Qtc=.310 box
and do +24dB boost at 10Hz with a Q=2.0, this will flatten the frequency
response from 10Hz - 40Hz. The region from 40Hz+ will have a -6dB/octave
slope which could be all out of wack anyway with room modes. It will be
+12dB up at the F3 of 147Hz and this will cause some serious sub/sat blending
problems. Another option is +24dB boost at 20Hz with a Q=2.0 and bump up
10Hz with a +10dB boost, this would make things fairly flat from 10Hz to 160Hz.
What a piecemeal mess. Toss in room modes correction, consider the phase
mess that has just been created and it is debatable if this concoction is
superior to a vented alignment. You are probally better off using the driver
the way it was designed to be used!
